Product Name£º

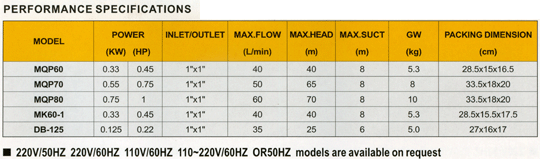

DB-125
Product Number£º
DB-125
Product Catalogue£º
KF/MDP/IDB/CP/MQP/MK/DB
STRUCTURAL CHARACTERISTICS
Cast iron pump body
stainless steel mechanical seal(graphite to ceramic)
brass impeller with radial preipheral blades
protection IP44
45# steel or stainless iron shaft
with thermal overload in single phase motor

PUMPS INSTALL ATION AND APLICATIONS
These pumps are suitable for handling clean water not containing abrasive articles and fluids which are not chemically aggressive to the pump comonents.Reliable.economical and simle to use,they are suitable for domestic apilications amd the sutomatic distribution of water from surge tanks,watering gardens and for boosting insufficient mains water pressure and for sanitary applications.The hydraulic performance of these sturdy and compact pums also makes them ideally suited for industrial alications,since they can be installed in conditions rohibitive for other pum types.These pumps should be installed in a coverde area,rotected against the weather.
